 Layers

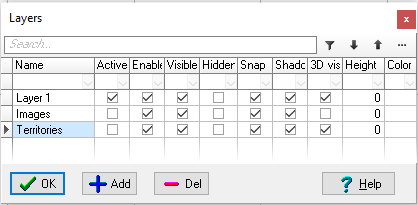

Cameras, constructions and 3D models can be distributed by layers. On each layout unlimited number of layers can be. The layers are managed using the Layers panel, which can be caused by the Main menu>Drawing>Layers. item.





By default, a single layer - Layer 1 is created. To create a new layer , click the Add button

To delete a layer, select a row with the layer in the table and click Del.



If there is a construction or camera on the layer , the layer can not be deleted. Firstly you must delete or move to another layer the construction or camera from this layer.

The active layer can not be deleted. Firstly you must make active another layer.



Cables are in the same layer as a camera to which they belong .



You can move cameras and constructions from one layer to another using the Move to active layer menu item.



Layers have the following parameters. You can edit them, by checking checkboxes and editing values in the Table of layers.



Name



The layers are named automatically. To rename select the field and enter new name by keyboard.



Active



New cameras and constructions as well as pasted ones are placed to the active layer.  Active layer can not be deleted. Only one layer can be active, other options can be applied to several layers simultaneously. Always one of layers is active. Active layer must be visible, enabled and not hidden.



Enabled



Cameras and constructions on an enabled layer can be selected and then edited, copied or deleted.



Visible



Cameras and constructions on an visible layer are visible in the Graphics window.



Hidden



Cameras and constructions on visible but hidden layer are displayed in the Graphics window by grey color on background, like objects in the hidden state. In contrast to the hidden state, at attempt to select the objects remain hidden. In addition, objects on hidden layers remain visible in 3D Video and 3D World windows.



Snaps



On a layer with marked Snaps field the snaps are enabled. By clearing this field, you can disable snap for objects on this layer.



Shadows



Objects on a layer with shadows marked are considered as obstacles in calculation of shadows, if they are obstacles according to their other setting. Using shadows field it is possible to exclude certain layers from shading calculation. The option works on the Graphics window and the 3D World. To enable shadows calculation other options must be enabled, see shadows.



See also:Shadows,Main menu>View>Calculate shadows for active camera, Main Menu>View>Recalculate shadows,Line type>Shadow, Layers>Shadow, Options box>Miscellaneous>Shadow, Options box>Calculate shadows from 3D models, Current construction parameter panel>3D model>Shadows, 3D Models window>Shadows, Choosing the best place for PTZ (dome) camera, Visualization of the camera control area projections and spatial resolution within them



3D visible



Objects on a 3D visible layer are visible in the 3D Video and 3D World windows.



Height



Base height of objects on the layer relative to the zero height. Heights of constructions on each layers are calculated relative to the Base height. The Base height is taken into account in the 3D Video and 3D World windows and in calculation of shadows. With the Base height, layers are very convenient for multi-level projects.





Heights of cameras and their view areas are not associated with the base height of layer, they are calculated from the base height of each camera. But when placing a new camera or pasting copied camera, the cameras base height is set equal to the base height of the active layer.



Color



In this field you can specify a color, by which constructions, cameras, cables, and text placed on this layer will be displayed in the Graphics window. To call the color dialog click on the field.

If you set white color then constructions, cameras, cables, and text will be displayed by their own colors.





See also: Working with layers and multilevel constructions, Working with 3D model-territory
