Selecting camera (row)

Selecting column

Selecting fragment

Selecting and editing cell

Changing column width

Changing row height

Moving columns and rows

Visibility of columns

Table views

Sorting by column data

Filtering by parameter value

Searching by parameter value




Selecting camera (row)



To select camera (row) bring the cursor to the left end of the row. The cursor should become a right arrow . Then click on this place. The selected row will be highlighted and marked by the sign .

To select adjacent cameras use up arrow and down arrow keys.



Selecting column



To select a column bring the cursor to the border between header and data of the column. The cursor should become down arrow . Click on this border.

To select several columns hold Ctrl. To select range of columns hold Shift or move the cursor, holding the left mouse button.



Selecting fragment



Bring the cursor to a corner cell of a fragment, press the left mouse button and then move the cursor, holding the left mouse button pressed. After selecting the fragment release the left mouse button.



Selecting and editing cell



To select a cell, click on it. To edit, double-click on it.

It is possible to move around the cells using keys with arrows.



As a result of double clicking on cell:



camera corresponding the row will be activated;
box or several boxes will be opened.  In the boxes it is possible to control or change the parameter located in the cell.



If it is an input parameter for calculation, it can be changed directly in the appeared box. If the parameter is a result of calculation, it is possible to change input parameters influencing this result.

If it is an information parameter of camera model, the Table of camera model appears.



You can not edit parameters directly in the Table of cameras.



After editing parameter it is necessary to refresh parameters of this camera in the Table of cameras using pop-up menu.



Changing column width



Bring the cursor to border of a column on the header. The cursor will become a double arrow . Press the left mouse button and move the cursor. After getting the necessary width release the mouse button.



Changing row height



Bring the cursor to border of a row on the left edge of the table. The cursor will become a double arrow . Press the left mouse button and move the cursor. After getting the necessary height release the mouse button.



You can change height only for all rows simultaneously.



Moving columns and rows



To move a column, place the cursor on the column header. Press the left mouse button and move the cursor. After moving column, release mouse button.



To move a row, place the cursor over the leftmost column with the row number. The cursor will look like an arrow to the right.

Select the row by clicking. Then press the left mouse button. A red line appears above the row.

Move the cursor along the left column with row numbers. After moving the red line to the target of moving the row, release the mouse button.



Visibility of columns



You can adjust visibility of columns, save and restore table structures as Views.



To show/hide any particular column:

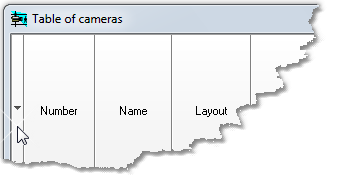

Click on the black triangle on the top-left corner of the table;
In the appeared menu choose Visible columns;
In the appeared list of all columns check or clear name of necessary columns.



You can also hide columns by selecting them and then choosing Hide selected columns in the context menu.



See also: Table tool bar>Views.



Table Views



You can adjust visibility of columns, save and restore table structures as Views.



See also: Table tool bar>Views.



Sorting by column data



To sort by the parameter value in the column, just click on the column header. Reclick changes sort order to the reverse one.



To sort by multiple columns, hold Ctrl while clicking on headings.



Filtering by parameter value



Click on the arrow in the combo box at the column top (between parameters values and header) and choose parameter value from the list.





In this combo box you can specify following filters:



Order by descending;
Order by ascending;
Clear filter;
Custom; - Combined custom filter with several conditions.
All - all rows;
Not empty - only not empty;
Empty - only empty.
Boxes with possible field value. Just select needed values.



You can set filters in multiple columns at the same time.



The resulting combined filter as a string can be used to select cameras for the PDF report.

Searching by parameter value



In the lower left corner of the table, above the toolbar the search bar is located. To search the entire table of cells containing specific values, enter this value in the search bar. Already in the process of typing the found matches in the table will be highlighted in yellow.





The number of matches found to the right of the search string is displayed.  More to the right there are the buttons for displaying rows with search results, navigating through search results, and calling the search options menu.





See also: Table of cameras, Tool bar, Pop-up menu, Camera parameters.
